| EVNET
FEATURES
EVnet is the system for centralization of machines
working status on a Personal Computer.
The machines may be an
electronic, half electronic or mechanical for socks production or other
kind of machines like sewing machine, ironer and so on.
Main work of
the EVnet system is to collect data on the production (pieces count, how
many time the machine was stopped, the type of the stop) so, from the
office, the costumer can understand if one machine has some mechanical
problem (for example: needles) electronic fail and more, checking day by
day the exact production.
From the main station in the office it's also
possible send a command to the machines, for example: speed block, sock
end stop or, for new machines, the costumer can read and save a
program.
All the information collected from teh machines may be used
for statistic elaboration on the main station.
There are some possible
statistic data elaboration (by machine, by day, by hour, by production and
by fail stop) in graphical way (histogram, line, etc...).

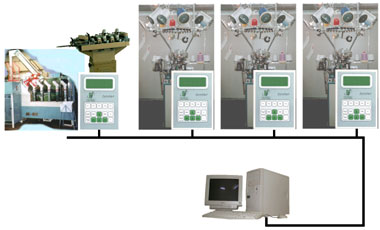

EVnet is composed by:

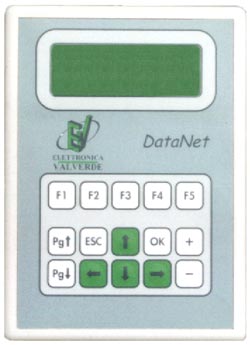

- An "intelligent" panel that receives stores and transmits all the
events to the personal computer.
- Net interface RS485.
- Dedicated Software on Personal Computer.
The Software installed on teh costumer's PC is the heart of
EVnet system. EVnet software has been developed with new
technology programming tools for Windows 95/98 (object oriented and Active
X controls); this software, in 32-bit technology, has graphic user
interface so very simply to use.
Every machine is represented by a
graphic symbol; this symbol is adjustable (size, position and graphic
picture).
The software interface system is by buttons and standard
windows menu. |
